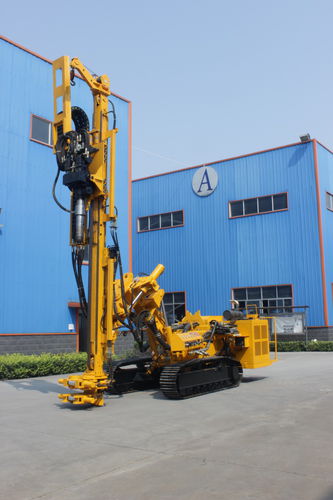

Piling drilling rig TH–900 geothermalwater wellcrawler
Add to favorites
Compare this product
Characteristics
- Applications
- piling, geothermal, water well
- Mobility
- crawler
- Drilling unit
- rotary
- Other characteristics
- hydraulic
- Drilling diameter
Max.: 225 mm
(9 in)Min.: 65 mm
(3 in)- Drilling depth
100 m
(328'01" )- Overall length (working)
7,980 mm
(314 in)- Overall width (working)
2,300 mm
(91 in)- Overall heigth (working)
2,860 mm
(113 in)- Machine weight
16 t
(17.6 us ton)- Motor power
160 kW
(217.54 hp)- Max driving speed
3 km/h
(2 mph)
Description
TH–900 Hydraulic Crawler drill rig can be widely used in drilling for grouting holes in projects such as cofferdam, foundation and geothermal well etc.
◆anchor drilling, anchoring project,slope support
◆filling holes,sealing curtain
◆Casing drilling
◆Underground water well drilling
◆Micro piling, steel rail piling
◆Tunnel shed protection
◆Observation hole
Patented technology
1. High efficiency hydraulic rotary impact power head
2. Multi-joint steering system
