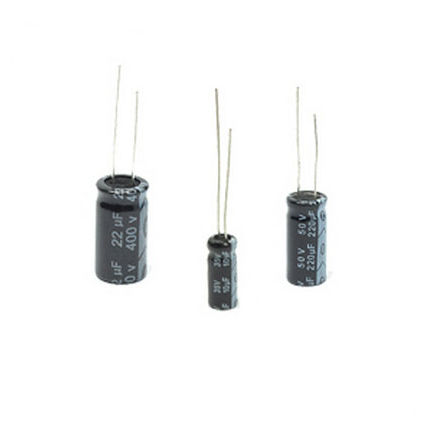

Electrolytic capacitor EGCA-01

for printed circuit boardsdissipation factor

Aluminum Electrolytic Capacitor Items - Characteristics Category Temperature Range - -40 ~ 105°C Rated Voltage Range - 6.3 ~ 100Vdc Capacitance Tolerance - ± 20% (M) (at 20’C ,120Hz) Leakage Current - 1≤0.01CV or 3 uA whichever is greater Where 1: Max. leakage current(uA). C: Nominal capacitance(uF), V: Rated voltage(V) (at 20C after 2 minutes) Dissipation Factor (tan 6) - Rated Voltage (Vdc) - 6.3 - 10 - 16 - 25 - 35 - 50 - 63 - 100 tan δ (max) - 0.22 - 0.19 - 0.16 - 0.14 - 0.12 - 0.1 - 0.09 - 0.08 When nominal capacitance exceeds 1,000uF, add 0.02 to the value above for each 1,000uF increase Low Temperature Characteristics (Max,Impedance Ratio) Rated Voltage (Vdc) - 6.3 - 10 - 16 - 25 - 35 - 50 - 63 - 100 Z (-25 °C) /Z (+20°C) - 4 - 3 - 2 Z (-40 °C) /Z (+20 °C) - 8 - 6 - 4 - 3
