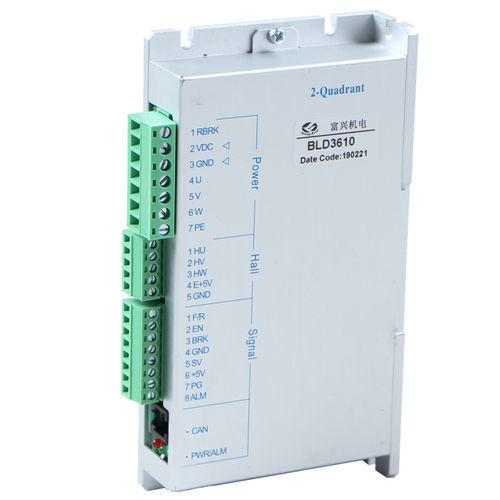

BLDC motor driver BLD3610TC

low-voltage

Features : ● Closed-loop speed control by Hall signal. Maximum torque can be achieved at low speeds. ● Wide speed adjustment range: support 200~20000 rpm speed range.(Two-pole motor) ● Provide soft start and stop function, softer start and stop, higher security. ● Wide voltage input range, adapt to 12~40V DC power supply. ● High current driving ability, continuous rated current up to 10A, the peak current up to 20A. ● Support external Potentiometer, external voltage and external PWM speed control. ● Provide over-voltage, under-voltage, over-current, over-temperature, hall sensor error protection and alarm function. ● Support CAN2.0B Modbus protocol. Typical application : BLD4820TC is widely used in textile equipment, medical equipment, food machinery and equipment, power tool, garden machine, smart-home device and other electrical automation control fields. Product overview : BLD4820TC is applied to the speed control of brushless DC hall motor. Its biggest advantage is that it can always control the motor to maintain the maximum torque at low speed. In addition, this product has advantages of diversified speed adjustment mode, wide speed adjustment range, complete functions, hardware and software full protection, etc.
