Slotless motor FL28SBL seriesDCBLDC24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Voltage
- 24 V
- Protection class
- IP40
- Configuration
- slotless, compact
- Number of poles
- 2-pole
- Other characteristics
- high-power
- Power
43 W, 72.5 W
(0.058 hp, 0.099 hp)- Intensity
2.3 A, 4.83 A
- Torque
0.05 Nm, 0.06 Nm
(0.0369 ft.lb, 0.0443 ft.lb)- Rotational speed
8,200 rpm, 11,500 rpm
(51,522.12 rad.min-1, 72,256.63 rad.min-1)- Diameter
28 mm
(1.1 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)
Description

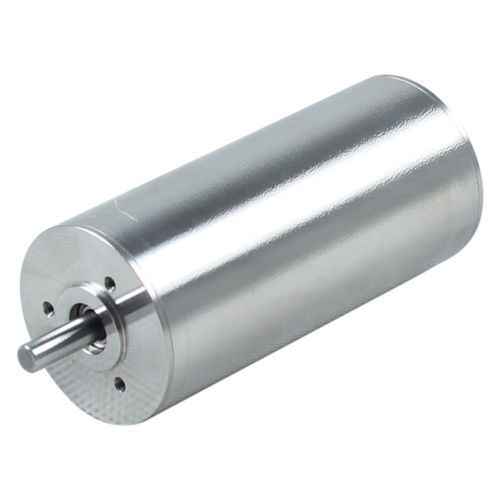

28mm FL28SBL Series slotless BLDC Motor
In slotless motors, the stator consists of ring-shaped plates with a flat winding on the inside. The inductance of these motors is very low, but the current in the windings rises very rapidly. They offer high power density combined with compact size.
