Slotless motor FL28SBL seriesDCBLDC24 V
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- BLDC
- Voltage
- 24 V, 12 V
- Protection class
- IP40
- Configuration
- slotless, compact, small
- Number of poles
- 2-pole
- Other characteristics
- high-torque, high-power, high-speed
- Power
15 W, 38 W, 75 W
(0.02 hp, 0.052 hp, 0.102 hp)- Intensity
0.8 A, 3.5 A, 4 A
- Torque
0.018 Nm, 0.054 Nm, 0.06 Nm
(0.0133 ft.lb, 0.0398 ft.lb, 0.0443 ft.lb)- Rotational speed
6,000 rpm, 8,000 rpm, 14,000 rpm
(37,699.11 rad.min-1, 50,265.48 rad.min-1, 87,964.59 rad.min-1)- Diameter
28 mm
(1.1 in)- Operating temperature
Min.: -20 °C
(-4 °F)Max.: 50 °C
(122 °F)
Description

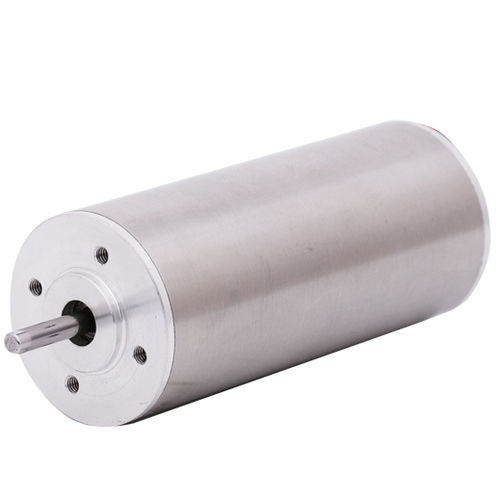

28mm FL28SBL Series BLDC Motor
In slotless motors, the stator consists of ring-shaped plates with a flat winding on the inside. The inductance of these motors is very low, but the current in the windings rises very rapidly. They offer high power density combined with compact size.
