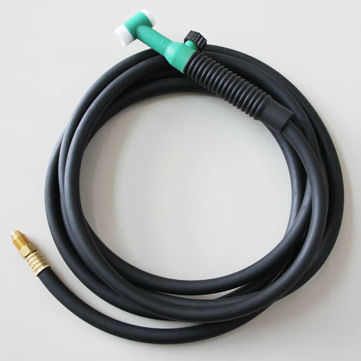

TIG welding torch TTM26V
AC/DC

TIG welding torch - TTM26V - Changzhou Huarui Welding & Cutting Machinery - AC/DC

TIG welding torch - TTM26V - Changzhou Huarui Welding & Cutting Machinery - AC/DC - image - 2

TIG welding torch - TTM26V - Changzhou Huarui Welding & Cutting Machinery - AC/DC - image - 3

Add to favorites

Compare this product

Characteristics

Technique: TIG
Other characteristics: AC/DC
Intensity: 160 A, 200 A

Description

TIG TMM26 Gas Cooled Tungsten Argon Arc Welding Torch TMM26-12-1/TMM26-25-1, with two cable, 12ft/25ft as photo Rating200A DC, 160A AC, Tungsten Diameter: 0.5-3.2mm Rear ConnectorM12*1, 35-50 connector, 1/4G, 7/8''-14UNF RH, 5/8''-18 UNF RH CertificationISO9001, CCC, CE, ROHS, TUV Packing1set/box neutral packing, 5sets/Carton Box Collet 10N21Collet Dia.0.5mm 10N22Collet Dia.1.0mm 10N23Collet Dia.1.6mm 10N24Collet Dia.2.4mm 10N25Collet Dia.3.2mm Collet Body 10N29Collet Body Dia. 0.5mm 10N30Collet Body Dia. 1.0mm 10N31Collet Body Dia. 1.6mm 10N32Collet Body Dia. 2.4mm 10N28Collet Body Dia. 3.2mm Alumina nozzle/ Ceramic Nozzle 10N50Std. Ceramic Cup Dia. 6mm 10N49Std. Ceramic Cup Dia. 8mm 10N48Std. Ceramic Cup Dia. 10mm 10N47Std. Ceramic Cup Dia. 11mm 10N46Std. Ceramic Cup Dia. 13mm 10N45Std. Ceramic Cup Dia. 16mm 10N44Std. Ceramic Cup Dia. 19mm Gas Lens Collet Body 45V29Gas Lens Body Dia. 0.5mm 45V24Gas Lens Body Dia. 1.0mm 45V25Gas Lens Body Dia. 1.6mm 45V26Gas Lens Body Dia. 2.4mm 45V27Gas Lens Body Dia. 3.2mm CONSUMABLES PARTS 18CGHeat Shield Cup Gasket 18CG20Heat Shield Cup Gasket 54N01Heat Shield Cup Gasket 54N63Heat Shield Cup Gasket(Large Dia Gas Lens) WP26Torch body(With Gasket) 98W18Back Cap " O " Ring 57Y02Back Cap Long 57Y04Back Cap Short 950Micro Switch Bulbous Button 950FMicro Switch Flat Button 950-40Bulbous Micro switch C/W 4mt 2 Core Cable 950-80Bulbous Micro switch C/W 8mt 2 Core Cable RDZ0590Switch Boot 607663Switch Retaining Boot 609123Protective Neoprene Cover, 4m 609125Protective Neoprene Cover, 8m 10N15Handle 315071Insulation Boot VS-1Valve Stem
