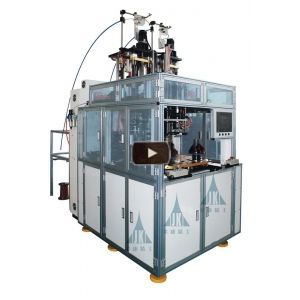

Wire winding machine RX92automatic
Add to favorites
Compare this product
Characteristics
- Product application
- wire
- Other characteristics
- automatic
Description
COIL WINDING AND INSERTING MACHINE
• Wire demeter range : 0.18-0.93mm
• Max. winding speed : 2000-3000r/min
• Max. coil segments : 5
• Suitable stack height : 20mm-105mm
• suitable motor poles : 2、4、6、8
• Air pressure : 0.5-0.8Mpa
• Power supply : 380V/50Hz Three-phase four-wire
• Power : 7.5KW
• Dimension(L*W*H)
• 1900mm*1350mm*2300mm
• Weight : ≈1500Kg
VIDEO
Other Changzhou New District JinKang Precision Mechanism products
COIL WINDING MACHINE
