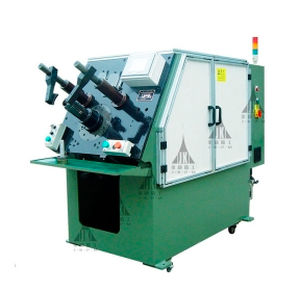

Inserting machine QX02

The coil inserting prcoess is the most important process in the manufacture of a stator for an electric motor. The coil insertion tool is the key part of coil inserting machine. In order to keep the coil inserting smoothly, we design and manufacture various kinds of insertion tools with absolutely high quality, well resistent. • Stator stack height : 5mm-130mm • Max. Stator O.D. : φ160mm • Stator I.D.range : φ17mm-φ110mm • Displacement of oil pump : / • Air pressure : 0.5-0.8MPa • Power supply : 380v/ 50Hz Three-phase four-wire • Power : 2.5Kw • Dimension(L*W*H) : 1500mm * 740mm * 1600mm • Weight : ≈1000kg The coil inserting prcoess is the most important process in the manufacture of a stator for an electric motor. The coil insertion tool is the key part of coil inserting machine. In order to keep the coil inserting smoothly, we design and manufacture various kinds of insertion tools with absolutely high quality, well resistent. This machine conducts gang control to inserting main shaft, wedge paper feeding shaft and wedge magazine indexing shaft through PLC control system assembly, cooperating with intelligent human-machine communication system. It conducts enamelled wires insertion, slot wedge cutting and moulding, also the wedges insertion into the stator slots when coil insertion, which completes the single/multi phase coil insertion and slot wedge insertion at one step. The machine has the advantages of even wire push torque, stable moulding of slot wedge, high production efficiency, low cost, easy and reliable use and maintenance.
