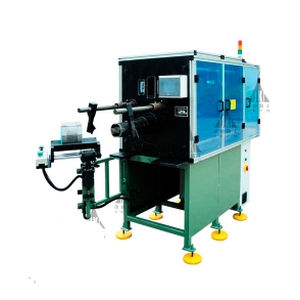

Inserting machine QX03

COIL INSERTING MACHINE (SERVO/HORIZONTAL/NO INDEXING) It is automatic horizontal coil inserting machine and employs an AC servo motor driven system, an AC frequency conversion speed regulating system, a pneumatic and a PLC integrated control system. • Stator stack height : 50mm-215mm • Max. Stator O.D. : φ300mm • Stator I.D. range : φ30mm-φ160mm • Displacement of oil pump : / • Air pressure : 0.5-0.8MPa • Power supply : 380v/ 50Hz Three-phase four-wire • Power : 3Kw • Dimension (L*W*H) : 2300mm * 740mm * 1500mm • Weight : ≈1000kg It is automatic horizontal coil inserting machine and employs an AC servo motor driven system, an AC frequency conversion speed regulating system, a pneumatic and a PLC integrated control system. Besides, it is endowed with the functions of auto slot wedge feeding at a sixed length, cutting, forming and inserting into stator with coil and so on. The inserting speed of coil can be set piecewise. Equipped with man-machine interface, it is endowed with the functions of status display, failure warning and various parameter settings, ect, and the advantages of wide application range, high automation degree, easy operation and convenient mould replacement. Capable of automatically pulling the stator coil and paper into the stator slots for one time; Capable of modifying the parameters on the touch screen, with the automatic paper feed mechanism capable of fixed-length paper feeding, molding, cutting and inserting into the paper base of the coil inserting mold.
