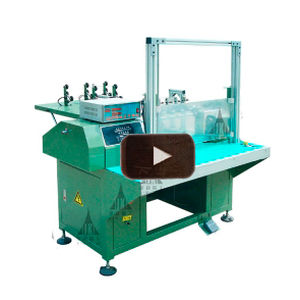

Wire winding machine RX01

semi-automatic

Wire diameter range:0.1-1.0mm; Winding width:≤190mm; Winding diameter:≤280mm; Effective distance between winding shafts:520mm • Wire diameter range : 0.1-1.0mm • Winding width : ≤190mm • Winding diameter : ≤280mm • Effective distance between winding shafts : 520mm • Distance of classes : ≤190mm • Max. winding speed : 3000RPM • Air pressure : 0.4-0.7MPa • Power supply : 220v/50Hz • Power : 0.75Kw • Dimension (L*W*H) : 1420mm * 1300mm * 1500mm • Weight : ≈550kg This machine can be made multi-type, multi-layer winding, is able to wind 1-10 wires at the same time, can automatically groove Automatic tap, equipped with two square shaft winding used alternately, its adaptable wire diameter ranges from ¢25 to ¢180 mm. Starting winding point , linewidth, winding speed, slow start, slow stop, row line direction, parking on both ends, Automatic homing, automatic starting, automatic slot, auto tap, etc can be set automatically. Ribbon cable on the slider is equipped with 1-10 of pay-off arm, high and low Angle can be arbitrarily adjusted; Equipped with 1-20 ¢210 mm * 320 mm steel barrels; Equipped with a complete set of 16 mm * 16 mm * 625 mm square shaft; High efficiency and easy operation; OEM available, same quality much lower price.
