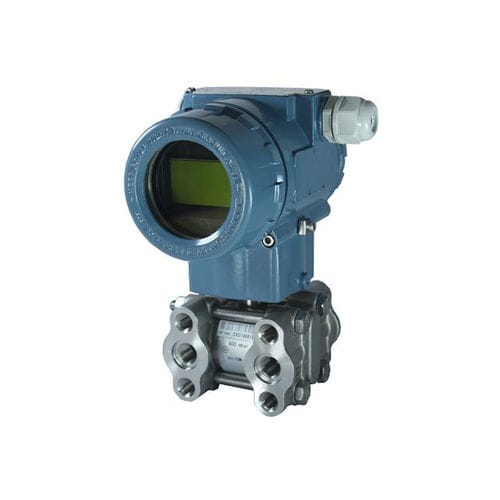

Differential pressure transmitter TX3351-DP4-20 mAHARTfor gas
Add to favorites
Compare this product
Characteristics
- Pressure type
- differential
- Output
- 4-20 mA, HART
- Fluid
- for gas, for liquids
- Material
- aluminum
- Protection level
- IP67
- Applications
- process
- Other characteristics
- with LCD display
Description
TX3351-DP Differential pressure transmitters are used to measure the liquid level, density, pressure and flow of liquid, gas or steam，then convert it into 4～20mADC HART current signal output。 TX3351-DP can communicate with RST375 handheld terminal or RSM100 Modem for parameter setting, process monitoring, etc.
Physical specifications
Material
Measuring capsule：SS 316L
Diaphragm：SS 316L、 Hastelloy C
Connect Flange：SS 304
Nuts and bolts：SS（A4）
Filling Liquid： silicone oil
Seal ring： （NBR）、 （FKM）、
（PTFE）
Transmitter housing： Aluminum alloy and sprayed with epoxy resin
Housing sealing ring： （NBR）
Nameplate： SS 304
Weight ：3.3kg（Not included：LCD、Mounting bracket、Process connection）
