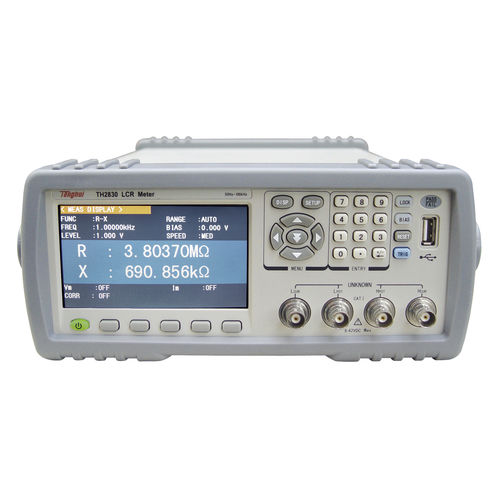

Benchtop LCR meter TH2830

Features ■ Low cost, high performance, small size ■ 4.3 inch TFT LCD Display ■ Soft power switch ■ Selectable Chinese-English operation language ■ Max. 100kHz test frequency ■ Max. 6 digit reading resolution ■ 10mVrms-2.0Vrms programmable signal level, built-in 0 - ± 5V/50mA bias source ■ DCR, 50mV-2V programmable test level, resolution 10μΩ ■ Ls-Rd / Lp-Rd Function (L, Rd display simultaneously) * ■ Highest test speed 13ms/time ■ Selectable 30Ω/100Ω signal source impedance ■ V/I monitor and auto level adjustment function ■ Built-in comparator, 10 bins sorting and count function ■ File storage and firmware update through U disk ■ RS232, RS485, USB, HANDLER, GPIB interface Brief Introduction ■ Adopting the latest technology & high density circuit design and concentrating the essence of LCR test, TH283X series is a new generation compact LCR meter of low cost and high performance. Instead of traditional mechanical power switch, it adopts software control power switch. The basic accuracy of 0.05% and good test stability can compare favourably with those high-end models. Being equipped with 4.3 inch TFT LCD Display and brand new interface system, TH283X series LCR meters possess elegant appearance and easy operation. Also, being provided with various interfaces and good compatibility with SCPI commands, TH283X series LCR meters are convenient for constituting all kinds of test system and satisfy various kinds of demands for inspection, production and scientific research.
