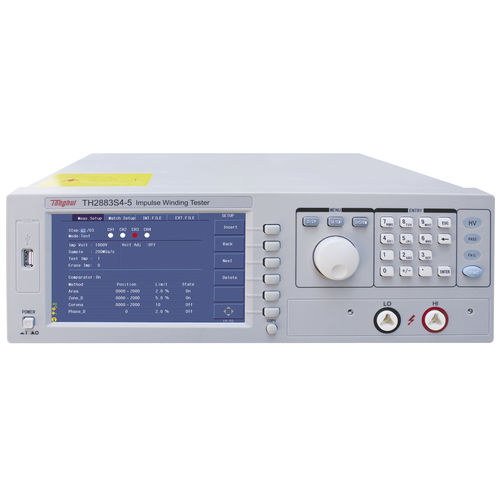

Voltage impulse tester TH2883S4-5

for transformersstator windingbenchtop

Features ■ The first provider of impulse winding tester from low voltage of 30V to high voltage of 10kV, single channel to multichannel in this industry (Max.:8 channels) ■ First winding tester compatible with LXI standard ■ Impulse voltage of 100V~5000V ■ Two models of 4-channel and 8-channel4 for selection ■ Each channel can be programmed and controlled as highterminal, low-terminal and OFF ■ 20 test procedures can be added at most ■ 65k color 7” TFT wide display screen ■ Up to 200Msps waveform sampling rate ■ Maximum measuring speed: 6meas/sec ■ Storage depth of 6k Bytes ■ High bandwidth analog acquisition circuit ■ High-fidelity corona extraction algorithm (patent technology) ■ Four waveform comparison methods ■ Automatic storage of instrument parameters ■ Measurements on voltage, time and frequency ■ Amplification, stretch and movement of the waveform for accurate display ■ Multi-sample average, average processing of 32 standard waveforms ■ Destructive testing for your correct choose of voltage ■ Use demagnetized impulse to ensure the conformity of tested waveforms ■ Login of different user right for easy management ■ 20 groups of instrument files can be stored and automatically loaded ■ Screen information can be stored in USB disk (COPY key
