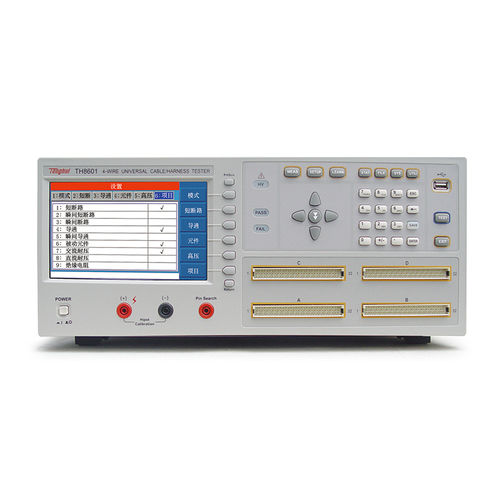

High-voltage tester TH8601 series

insulationcontinuityresistance

Features ■ 7” TFT LCD truecolor display screen, 16-bit ,800X480 resolution ■ Cotex_M3 processor core ■ Selectable Chinese and English operation interface ■ AC: test frequency of 50Hz-300kHz, accuracy of 0.02% ■ DC: test range of 0V-5V and accuracy of 10% ■ Maximum 128 pin for sweeping and testing ■ Insulation resistance of more than 10G ■ Selectable RS232, RS485, GPIB, USB,LAN and Handler interfaces ■ USB interface can be used for storage of setup files and test data as well as upgrade of the program Brief Introduction ■ TH8601 series four-terminal wire tester is multifunctional and automatic test system of wire comprehensive parameters, which is exclusively used in quality and connection reliability test for various kinds of cables, wiring harness and winding displacement. This system provides programmable constant current & constant voltage source and high-voltage power supply. The test items include continuity, passive element (inductance, resistance, capacitance and diode), AC/DC withstand voltage, insulation resistance and sll kings of high and low voltage parameters. Adopting advanced LCR figure sampling and channel switching technique of high speed and long life, this system significantly improves the test precision, speed and working life. Also, this system adopts high and low voltage isolation technique, so the testing performance of the insulation resistance is greatly advanced. Various interfaces of RS232, RS485, GPIB, USB, LAN and handler are convenient for users to apply to automatic detect and production line.
