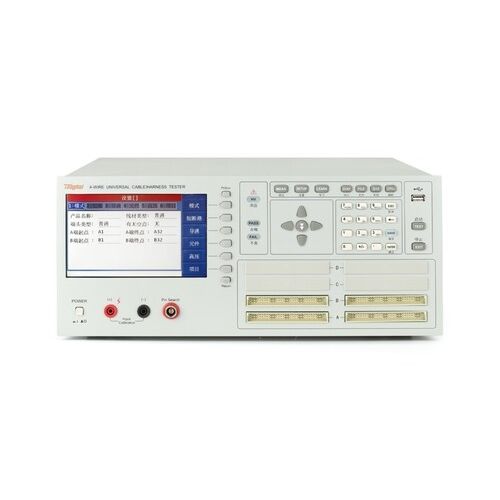

Resistance tester TH8603-4

capacitanceHipotconductance

Features ■ Test Pin: 512pin, four-terminal test ■ Conductance, Transient open and short circuit, Hipot, IR, Component test. ■ (Patent) High and low voltage separation technology, insulation impedance > 100GΩ ■ Built-in 10A independent DC current source for pressure dropping test ■ 7” TFT LCD TrueColor display screen, 16-bit, 800X480 resolution ■ Firmware update through U disk ■ Selectable Chinese and English operation interface ■ (Patent) 4 high-pressure test modes: a pair of other, dichotomy, automatic test, grounding test. ■ Excellent and reliable ARC detection function ■ Testing resistance, capacitance, diode and other components using four-terminal testing technology ■ The module equipped with independent read-write chip detects whether the chip in the wire is working normally ■ Support for connector testing ■ Support multi-file testing, providing flexible solutions for complex wires ■ Handler supports up to 40 outputs ■ Communication command provides two instruction systems: SCPI ■ Provide instrument self-inspection function, check instrument fault on line Application ■ Communication and IT Telephone line, network cable, multi-strand cable, mobile phone screen cable, TYPEC data cable, USB data cable, laptop screen cable, HDMI cable, VGA cable, IDE hard disk cable, SATA hard disk cable, etc. ■ Automotive Electronics ECU cable, automotive wiring harness, navigation cable, navigation screen cable, car electronic product cable, audio and video cable ■ Electronics Industry Flat wire, flat wire, connector, power cord, multiplexer, RS232 connection line, GPIB cable, USB extension cable, multi-core socket
