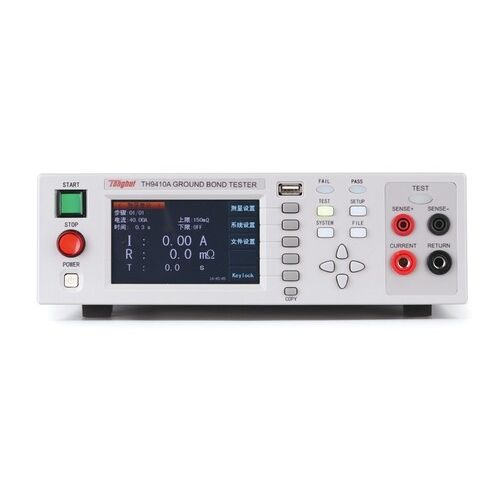

Ground bond tester TH9410A

for electrical appliancesmotorfor transformers

Features ■ Test current: 1.00-45.00A ■ Grounding resistance range: 0-600mΩ ■ Four-terminal test mode to ensure test accuracy ■ The internal power amplifier circuit drives the current output, which is not affected by the power supply and load ■ The output holes on the front and rear panels are designed to facilitate the integration of standard chassis ■ 480×272 dots, TFT-LCD display ■ 999.9 seconds test time, which is greater than common 60S test requirements ■ Keyboard lock function to prevent misoperation ■ Safety lock function to prevent the instrument from accidentally opening the test state ■ Store 20 test files, each with 20 test steps Application ■ Automated test system ■ Household appliances ■ Transformer, motor ■ Electrical equipment ■ Electric heating appliances ■ Lighting industry ■ New energy vehicles ■ Electronic components ■ Medical equipment
