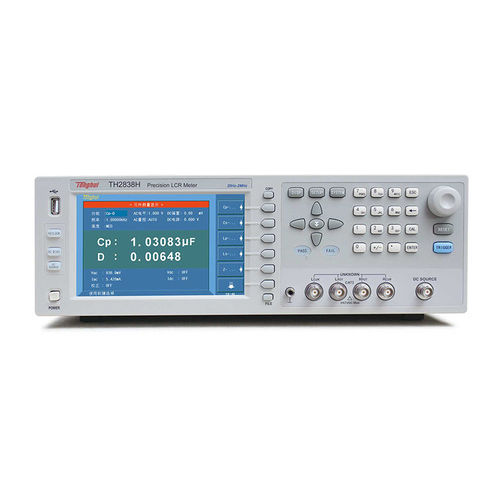

Benchtop LCR meter TH2838H

Features ■ High accuracy:Adopt Auto-balance bridge technology, 4-terminal pair ■ High stability and consistency:Up to 15 ranges ■ High speed:Up to 5.6ms ■ High resolution:7- inch, 800×600 ■ High power: Signal source:Voltage up to 20Vrms(only TH2838H) Current up to 100mA(only TH2838H) DC bias:Voltage up to±40V(only TH2838H) Current up to 100mA Up to 120A when controlling 6 sets of TH1778 series DC Bias Current Source by external DC Bias interface Independent Voltage Source: ±10V programmable output (only TH2838H) ■ 201 Points List Sweep Function ■ Multi-parameter Graphic Sweep Function ■ Arithmetical operation ■ 10 bins sorting, sorting result with sound and light alarm ■ Huge storage space: Internal: 100 groups of setting files, 10 groups of gif image files External: 100 groups of setting files through USB storage ■ Rich interfaces: USB HOST, USB DEVICE, LAN, HANDER, GPIB (Optional), SCANER(Optional), external DC BIAS control interface ■ High compatibility: Support SCPI commands, compatible with KEYSIGHT E4980A, E4980AL, HP4284A etc.
