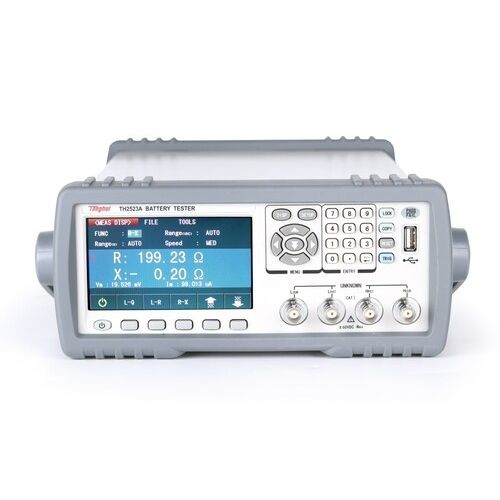

Battery tester TH2523A

voltageresistanceimpedance

Features ■ Multiple test functions ·4-terminal test, the test can’t be influenced by impedance of test leads. ·Contact inspection, to inspect the contact of test leads in testing ·Deviation deduction (rel) and reference operation, eliminate the influence of base to test result. ■ Feature of battery tester ·Basic impedance accuracy: 0.1% ·Basic voltage accuracy: 0.1% ·Min. resolution of impedance:1uΩ ·Min. resolution of voltage:100uV ·Max. test speed 50 times/s ·1kHz AC constant current source test ■ R, V, L, Z, θ test ■ 24 bit color 4.3 inch LCD display ■ LCD resolution 480×272 ■ Direct and Δ% display ■ V, I test signal level monitor function ■ Graphic scanning and analysis ■ 10 bin compare, High limit, low limit, pass and alarm function ■ Statistics, like CpK, Cp.etc ■ 100 groups of file for storage and load ■ Information in screen stored in U disk. ■ Automatic update through USB HOST ■ Chinese-English operation system selectable ■ Foot switch trigger function ■ Handler interface ■ RS232、USB HOST 、USB Device、GPIB(optional)，for communication with PC and remote control Brief Introduction ■ As the growth of electronic products, cell phone, home appliances, electric vehicle and bike emerge in an endless stream, all need to work with battery, so the fast inspection on batter will influence the performance of products. With Tonghui’s experience in impedance test and marketing survey, the new battery tester-TH2523 is successfully launched.It can be competitive with other similar products with its outstanding performance, easy operation and new look.
