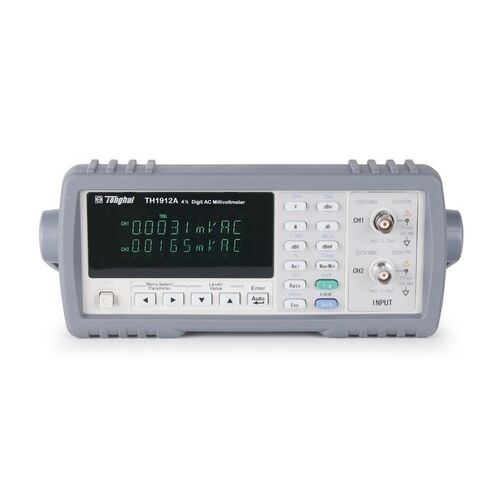

Digital millivoltmeter TH1912A

AC

Features ■ Frequency range: 5Hz-5MHz ■ Measuring voltage range: 50μV-300V, resolution: 0.1μV ■ Measurement display function: 4 1/2 digits VFD, dual display: the main display shows one reading, and the secondary display can call up other readings at will Absolute value: mV, V, W, dBm, dBV, dBmV, dBμV, Vp-p Relative value: dB, %, Max/Min ■ Software menu setting: measure power and dBm, set source load resistance arbitrarily Measure dB,%, Max/Min reference value setting Ground (GND), floating (Float) setting and safety warning ■ Standard RS232C interface, SCPI command programming support Application ■ Production line workbench ■ Repair workbench ■ Teaching laboratory ■ Automated test equipment
