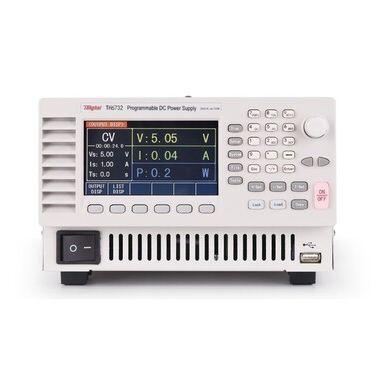

AC/DC power supply TH6732

variable-outputswitchingprogrammable

Features ■ Rated Output: 250V/8.4A/720W ■ Wide range, and constant power output ■ High efficiency and high power density ■ Programmable internal resistance, designed for battery output simulation ■ Constant current (CC) priority mode, prevent overshoot for LED power supply ■ Master-slave series and parallel operation ■ 24-bit 4.3-inch color LCD display ■ Numeric keyboard operation ■ Voltage and current adjustment with knob ■ Timed output (0-3600.0s) ■ programmable voltage or current rising time ■ RS232, USB HOST, USB DEVICE, LAN, and analog control interface Brief Introduction TH6700 series is a single channel output, wide range programmable switch mode DC power supply, with three output powers of 360W, 720W, and 1080W. Users are able to realize 2 master-slave in series or 3 master-slave in parallel connection, to achieve the requirements of higher voltage and higher current output. TH6700 series is designed with adjustable slope function that allows users to set the rise time and fall time of current and voltage output. When testing lighting devices and large capacitors, inrush current will be generated as soon as the output is turned on, which severely shortens the lifetime of the tested parts. In this case, the slope function ensures the voltage transmission is smooth and slow at the switching moment which prevents the tested parts from being damaged.
