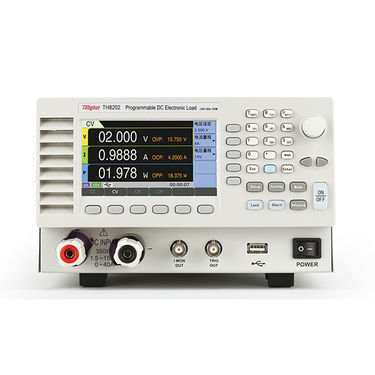

DC electronic load TH8202

programmableRS-232with USB interface

Programmable DC Electronic Load Input Power: 350W Input Voltage: 150V Input Current: 80A Dynamic Frequency: 50kHz Samping Speed: 100kHz Linux OS Features ■ Constant current (CC), constant resistance (CR), constant power (CV), constant power (CP) operation mode ■ Current remote control monitoring function, external trigger function ■ 1mV/10μA high resolution, ripple measurement function ■ Dynamic current/voltage test, up to 50K dynamic frequency ■ Voltage and current measurement can achieve high precision while testing speed up to 100KHz ■ Programmable soft start function ■ CR-LED test, arbitrary I-V characteristics, battery test, dynamic scan test, load effect, list function and many other advanced functions ■ Overvoltage (programmable), low voltage, over current(programmable), overpower (programmable), overheating,anti-reverse protection, etc. ■ Remote voltage compensation input test function ■ Short circuit function simulation ■ The adoption of the Linux operating system makes the number of internal parameter file storages essentially unrestricted ■ Perfect U disk function (parameter file storage and loading,interface screenshot, system firmware upgrade) ■ Setting parameters support power-off memory function ■ Intelligent temperature control fan ■ RS232 (standard), USB (standard), Ethernet (standard), WIFI(optional) ■ Matching with upper-computer software to achieve remote operation and monitoring matching Application ■ Power Chargers, switching power supply, communication power, LED drivers, cell phone batteries, portable power source ■ New energy Solar cells, new power cars, electric bicycles
