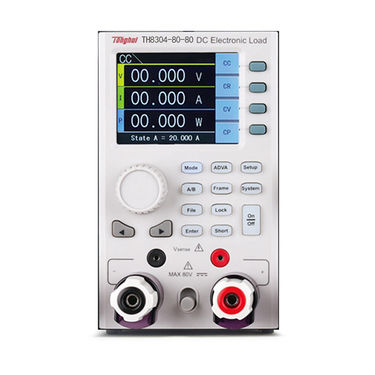

DC electronic load TH8304-80-80

programmable

Programmable DC Electronic Load Input Power: 500W Input Voltage: 80V Input Current: 80A Dynamic Frequency: 50kHz Samping Speed: 500kHz Modular Design Features ■ High resolution: 0.1mV/10μA ■ Up to 50kHz dynamic frequency ■ Up to 500kHz sampling speed ■ 12 advanced test functions ■ Modular design, support each module to operate independently ■ One single machine can support up to five modules in parallel and support up to ten channels ■ The maximum power of the whole machine is 2000W, and the online maximum current is 400A ■ The maximum power of the module is 400W, the maximum current is 80A and the maximum voltage is 600V ■ Connect via CAN interface, support up to four complete machines online ■ 24-bit color 2.8-inch color LCD display ■ Chinese and English operation interface ■ Smart fan system ■ Support power-on hold function ■ Support timing function ■ Electrical isolation, external input and output ■ Support over current protection (OCP), over voltage protection(OVP), over power protection (OPP), over temperature protection(OTP), reverse polarity protection (REV), low voltage protection (LVP) Application ■ Power supply Chargers, switching power supplies, communication power supplies, LED drivers, mobile phone batteries, power banks, etc. ■ New energy Solar cells, new power cars, electric bicycles
