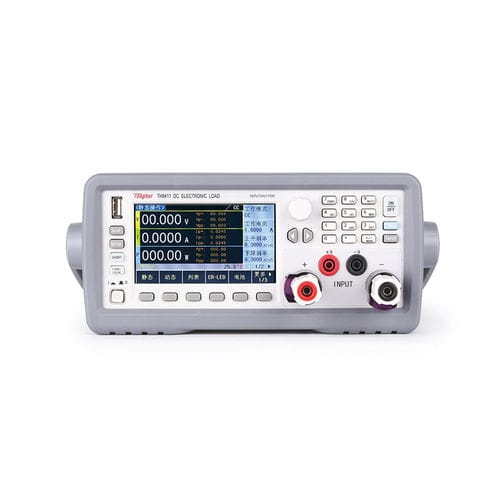

DC electronic load TH8411

programmable

Economic Programmable DC Electronic Load Input Power: 175W Input Voltage: 500V Input Current: 15A Dynamic Frequency: 25kHz Samping Speed: 500kHz Features ■ High resolution:1mV/0.1mA ■ Up to 25kHz dynamic frequency ■ Up to 500kHz sampling speed ■ Low ripple and low noise ■ Voltage/current ripple, peak, peak-valley measurement ■ Voltage/current waveform display ■ 11 kinds of operation and measurement functions ■ 4.3-inch 24-color 480X272 TFT LCD screen, Chinese and English interface ■ Numeric keyboard and knob operation ■ Screen copy function ■ Remote compensation function ■ Intelligent fan control ■ Protection mode: over voltage, over current, over power ■ Support U disk file storage and loading, program upgrade ■ Software control and detection through computer ■ Equipped with HANDLER interface for automatic matching ■ SCPI command protocol Application ■ Power supply Chargers, switching power supplies, communication power supplies, LED drivers, mobile phone batteries, power banks, etc. ■ New energy Solar cells, new power cars, electric bicycles
