CCTV camera CZ6404

industrialdigital3D

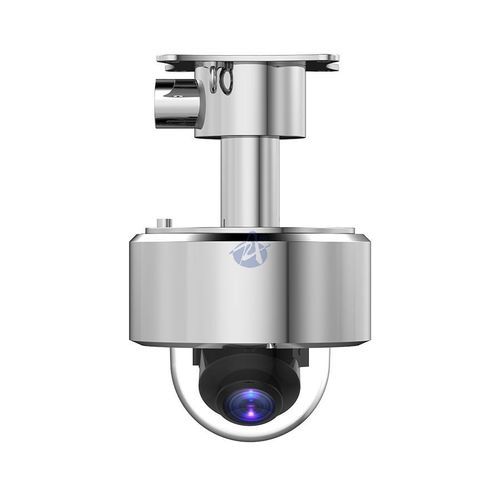

The ATEX & IECEx certified CZ6404 are ZUOAN designed classic explosion-proof corrosion-proof camera, which can load various camera. This product has obtained group II explosion-proof level certification and temperature level certification, applicable for Zone 1 and Zone 2 hazardous areas that explosive mixture of group IIA, IIB, IIC, T1~T6 gases, vapors and air may exists, Zone 21 and Zone 22 hazardous areas that explosive dust may exist. For example: refine, oil extraction, gas extraction, chemical, petrol station and other environment. Main Features: •ATEX, IECEx certified • Application: gas zone 1, zone 2; dust zone 21, 22. • Exd II CT6 Gb/ Ex tD A21 IP68 T80℃ • Stainless steel 304 or 316L • Optional electropolished or corrosion resistant paint finish • Enclosure Protection: IP66, IP68 (2m, 2h) •Power input: DC12V or POE power supply •High image definition,5MP, 1/2.7” CMOS image sensor •H.265 codec •Built-in IR LED, max IR distance: 40 m •ROI, SMART H.264+/H.265+, flexible coding •Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking •Optional alarm: 1 in, 1 out; audio: 1 in, 1 out •Intelligent detection: Intrusion, tripwire Specification: Camera Image Sensor 1/2.7” 5 Megapixel progressive CMOS Max. Resolution 2592 (H) × 1944 (V) ROM 128 MB RAM 256 MB Scanning System Progressive Electronic Shutter Speed Auto/Manual 1/3 s–1/100000 s Min. Illumination 0.008 Lux @ F1.5 S/N Ratio >56 dB Illumination Distance 40 m (131.2 ft) Illuminator On/Off Control Auto/Manual Illuminator Number 2 (IR LED) Lens Lens Type Motorized vari-focal Mount Type φ14 Focal Length 2.7 mm–13.5 mm Max. Aperture F1.5
