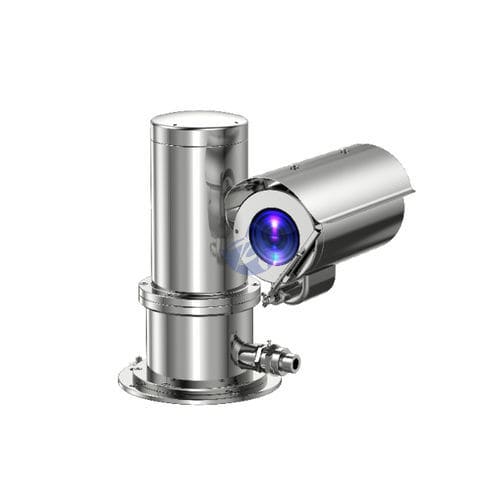

PTZ camera ZAT660

industrialanalogmonitoring

ZAT660 is a brother model of ZAT670, without infrared lights. The ZAT660 explosion proof ptz camera also featured as integrated zoom camera, wiper system, support alarm&audio input and output, fiber optical and RS485 communication, remote control washing tank. Mechanical Housing Stainless steel 304 or 316L IP IP68 Cable thread hole 1pcs G3/4 or NPT3/4 or M25*1.5 Wiper yes Electrical Voltage AC85V～AC265V or DC24Vor AC24V Power 50W /70W (with thermostat) Ambient Ambient temperature -25 to +60℃ Air pressure 80Kpa to 106Kpa Relative Humidity ≦95% (no condensation) Communication Communication support analog video output 485 Communication Support Pelco-D, Pelco-P Communicate Rate 2400 to 19200bps Alarm Alarm Input 2-channel/ 7-channel Alarm Output 1-channel, action with alarm Intelligent Alarm Audio detective, move detective, video shield, network interrupt, IP address conflict, storage full, storage error, illegal access Audio Audio Input Audio input (LINE input, MIC input), audio peak:2-2.4Vp-p,output impedance: 1KΩ+10% Audio Output Line-level impedance 600Ω
