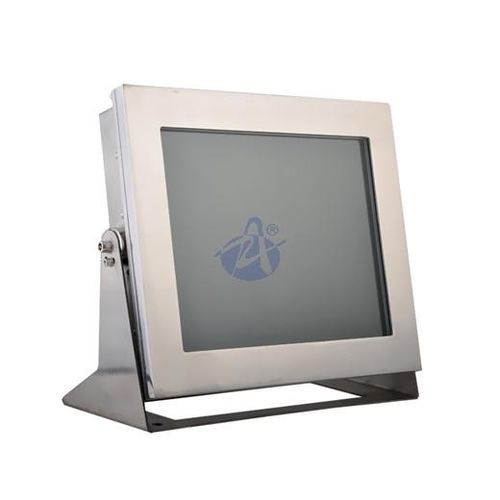

LCD monitor CZ40017"1920 x 1080wall-mount
Add to favorites
Compare this product
Characteristics
- Technology
- LCD
- Display size
- 17"
- Resolution
- 1920 x 1080
- Mounting
- wall-mount
- Applications
- industrial
- Other characteristics
- VGA, stainless steel, explosion-proof
Description
· Fit for gas zone 1, zone 2;
· Fit for dust zone 21, 22;
· IP68;
· 17inch display
Mechanical
Housing
Stainless steel 304 or 316L
IP
IP66
Cable thread hole
M25*1.5 or M27*1.25
Electrical
Voltage
AC85V～AC265V or DC24Vor AC24V
Power
50W
Surge Protect
Optional, TVS6000V surge protect
Ambient
Ambient temperature
-25 to +60℃ / -45 to +80℃
Air pressure
80Kpa to 106Kpa
Relative Humidity
≦95% (no condensation)
Function
Dot Pitch
0.24825mm*0.24825mm
Resolution
1920*1080P
Brightness
300cd/m2
Contrast
1000:01:00
Response Time
14ms (G. To G)
Color
16.7M
Line Frequency
31.5-60KHz
Field Frequency
56-75Hz, Flick-free
View Degree
Horizontal 176°
Connector Port
VGA,or BNC, S-VHS, RGB, CVBS
General
Cable
integrated cable
Size
473*200*396mm
Weight
48kg
Mounted
desk
