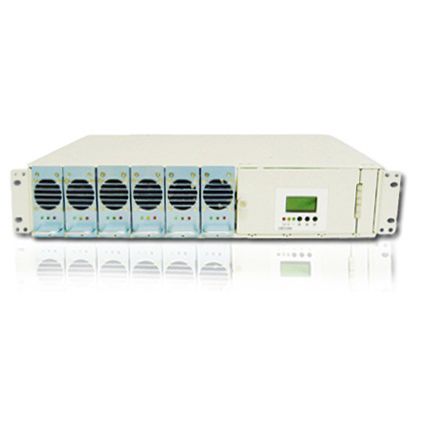

AC/DC power supply A48/15/90(A24/30/180)switchingsingle-phaserack-mount
Add to favorites
Compare this product
Characteristics
- Type
- AC/DC
- Technology
- switching
- Network
- single-phase
- Mounting
- rack-mount
- Applications
- for telecom applications
- Input voltage
110 V, 220 V
- Output voltage
Max.: 58 V
48 V
Min.: 44 V
- Current
Max.: 120 A
Min.: 0 A
Description
Telecom Power System's SMR SHELF features a rectifier set at A48/15(A24/30), an input voltage of 110V or 220Vac (1P2W+G), a super size voltage of 90~275V, an input frequency of 45~63Hz, an output voltage of 48V(44~58V) and an output current that ranges from 0~60A (0~120). Its input switch is 50A, load switch at 100A(50a x2) and the battery Switch is 100A(50ax2). This product has a low pressure cut off the LVDS of 100A. Its dimension is 88 × 484W × 350mm and has an audible noise of 55dBA. It has an SMR Type Switching Charger model A48/15(A24/30).
