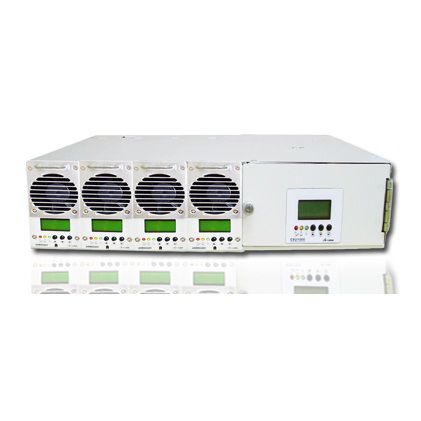

AC/DC power supply A48/25/50

switchingsingle-phaserack-mount

Channel Well AMB8030H rectifier requires input voltage of 110V/220Vac (1P2W+G). Super size voltage is between 90-275V and ultra specification voltage range is 90-275V. The input frequency range is 47-63Hz. It provides output voltage of 48V(44-58V). Output current is in the range of 0-50A (110V-30A). It has 32A input, load and battery switch. The low pressure cut off the LVDS is 40A. The dimensions of 19" are 132.6H×484W×350D(mm), and 23" are 132.6H×584W×350D(mm). The audible noise is 60dBA. The SMR type is switching charger of AMB8030H model. The AC input voltage is 110V/220Vac (1P2W+G), and AC input current is 9A (110V/220V maximum). It offers frequency of 4563Hz and power factor of ≧0.99 at 50-100% load (220Vac). Efficiency is ≧91 at 50-90% load (220Vac). AMB8030H has 44V58V DC output voltage, 025A (110V) DC output current. It provides current suppression of 525A and voltage regulation of ≦±1.
