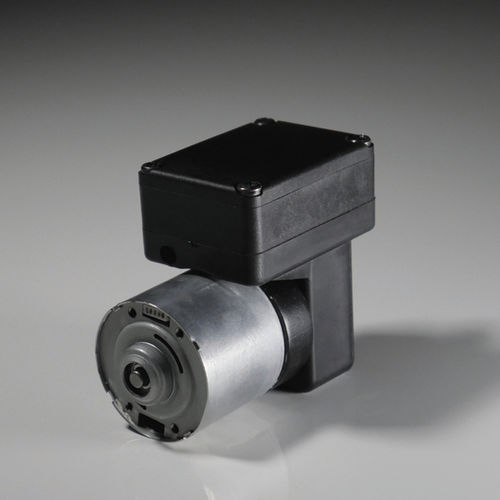

Diaphragm vacuum pump D16
oil-free110VAC230VAC

diaphragm vacuum pump
diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
110VAC, 230VAC, 12VAC
Number of stages
single-stage
Applications
for medical applications, for gas, OEM, air sampling
Other characteristics
compact, low-noise level, portable, miniature
Ultimate vacuum

250 mbar
(3.63 psi)

Flow rate

16 l/min
(4.23 us gal/min)

Length

100 mm
(4 in)

Width

43 mm
(1.69 in)

Height

71 mm
(2.8 in)

Weight

333 g
(11.75 oz)

Description

Efficient, low current draw motor providing long life operation from battery power sources. • Ultra-lightwieght design compared with competitve technologies of comparable flow rate. • Oil-free, maintenance free operation. • Innovative diaphragm design provides flow rates previously only achievable from much larger pumps. • Robust construction - ideal for portable applications. • Can be used in any orientation.
