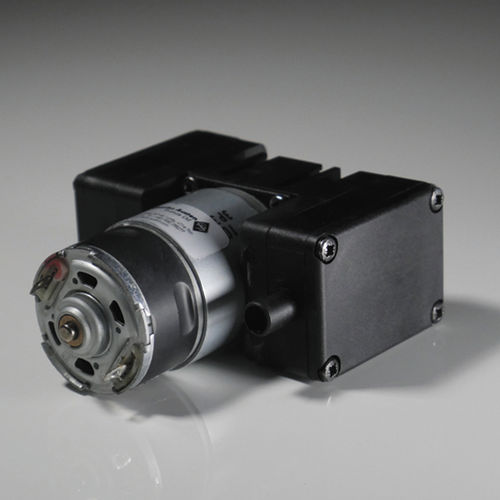

Diaphragm vacuum pump D16 Duplexoil-free12VAC24VAC
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- oil-free
- Supply voltage
- 12VAC, 24VAC
- Number of stages
- single-stage
- Applications
- for medical applications, for gas, OEM
- Other characteristics
- compact, low-noise level, portable, miniature
- Ultimate vacuum
250 mbar
(3.63 psi)- Flow rate
24 l/min
(6.34 us gal/min)- Length
99 mm
(4 in)- Width
114 mm
(4.49 in)- Height
43 mm
(1.69 in)- Weight
380 kg
(837.76 lb)
Description
Efficient, low current draw motor providing long life operation from battery power sources.
• Ultra-lightwieght design compared with competitve technologies of comparable flow rate.
• Oil-free, maintenance free operation.
• Innovative diaphragm design provides flow rates previously only achievable from much larger pumps.
• Robust construction - ideal for portable applications.
• Can be used in any orientation.
Catalogs
D16 DUPLEX BLDC
2 Pages
D16 DUPLEX DATASHEET
2 Pages
