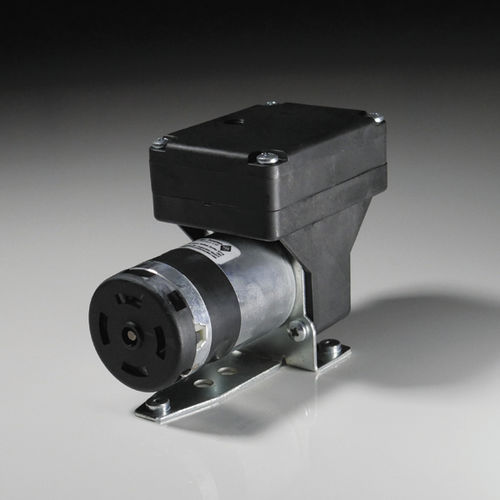

Diaphragm vacuum pump D34
oil-free12VACsingle-stage

diaphragm vacuum pump
diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
12VAC
Number of stages
single-stage
Applications
for medical applications, for gas, OEM, for fuel cells, air sampling
Other characteristics
compact, low-noise level, portable
Ultimate vacuum

250 mbar
(3.63 psi)

Flow rate

34 l/min
(8.98 us gal/min)

Length

99 mm
(4 in)

Width

65 mm
(2.56 in)

Height

101 mm
(3.98 in)

Weight

780 g
(27.51 oz)

Description

Efficient, low current draw motor providing long life operation from battery power sources. • Ultra-lightwieght design compared with competitve technologies of comparable flow rate. • Oil-free, maintenance free operation. • Innovative diaphragm design provides flow rates previously only achievable from much larger pumps. • Robust construction - ideal for portable applications. • Can be used in any orientation.
