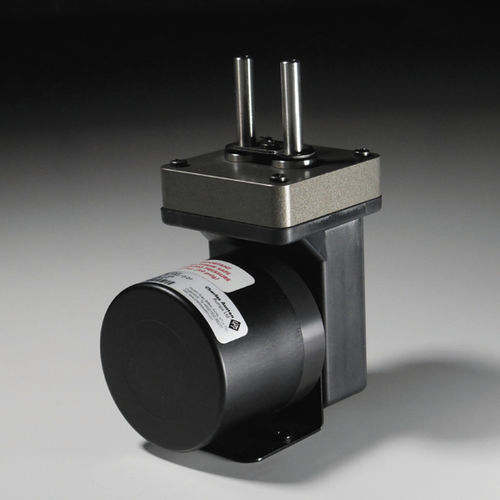

Piston vacuum pump RP12 seriesrocking pistondiaphragmlubricated
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, piston, rocking piston
- Lubrication
- lubricated
- Supply voltage
- 230VAC, 110VAC, 240 VAC, 24VAC
- Number of stages
- single-stage
- Applications
- for gas
- Other characteristics
- compact
- Ultimate vacuum
200 mbar
(2.9 psi)- Flow rate
10 l/min, 11 l/min, 12 l/min
(2.64 us gal/min, 2.91 us gal/min, 3.17 us gal/min)- Length
146 mm, 148 mm
(6 in, 6 in)- Width
67 mm, 68 mm, 94 mm
(2.64 in, 3.7 in, 26.77 in)- Height
104 mm, 129 mm, 140 mm
(4.09 in, 5.08 in, 5.51 in)- Weight
1 kg, 1.1 kg, 1.75 kg
(2.2 lb, 2.43 lb, 3.86 lb)
Description
Designed for continuous duty, the RP12 Series incorporates a long life PTFE piston seal with the capability to run for 10,000 hours.
• Available with a wide variety of motor types and voltages including a BLDC version.
• Sustainable high performance with material options.
APPLICATIONS
• AUTOCLAVES
• INSTRUMENT CALIBRATION
• PNEUMATIC VALVE OPERATION
• MEDICAL CUFF INFLATION
• VENDING
• HUMIDIFICATION SYSTEMS
Catalogs
RP12
2 Pages
RP12 DATASHEET 2018
2 Pages
