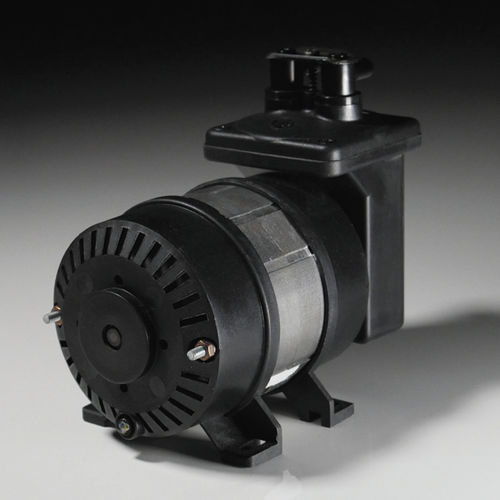

Diaphragm vacuum pump Capex L2
oil-free24 Vdc12 Vdc

diaphragm vacuum pump
diaphragm vacuum pump
diaphragm vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
diaphragm
Lubrication
oil-free
Supply voltage
24 Vdc, 12 Vdc
Number of stages
single-stage
Applications
for medical applications, for exhaust gas, OEM, for fuel cells, air sampling
Other characteristics
compact, low-noise level, compressor, chemical-resistant, low energy consumption
Ultimate vacuum

280 mbar
(4.06 psi)

Flow rate

8 l/min
(2.11 us gal/min)

Length

232 mm
(9 in)

Width

178 mm
(7.01 in)

Height

155 mm
(6.1 in)

Weight

2 kg
(4.41 lb)

Description

Robust construction and long term reliability. Capex L2 AUTOCLAVES pumps are ideal for low maintenance applications. • Exceptionally low cost, the Capex L2 has a service life of up to 10,000 hours. • Lightweight components and the ability to easily rotate the pump head in any orientation, making it easy to fit in clients equipment. • Offers exceptional performance for its size, the Capex L2 is equally suited for both continuous vacuum and pressure installs.
