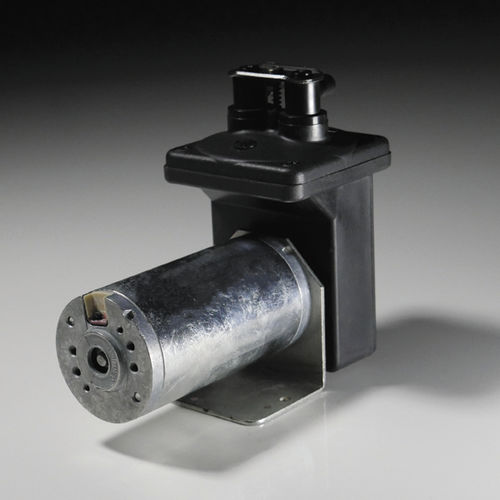

Diaphragm vacuum pump CAPEX V2 serieslubricated24 Vdc12 Vdc
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Lubrication
- lubricated
- Supply voltage
- 24 Vdc, 12 Vdc
- Number of stages
- single-stage
- Applications
- for medical applications, for gas, chemical process, suction, OEM, air sampling
- Other characteristics
- compact, low-noise level, small, chemical-resistant, brushless DC
- Ultimate vacuum
240 mbar
(3.48 psi)- Flow rate
17 l/min, 32 l/min
(4.49 us gal/min, 8.45 us gal/min)- Length
140 mm
(6 in)- Width
67 mm
(2.64 in)- Height
127 mm
(5 in)- Weight
1 kg, 1.25 kg
(2.2 lb, 2.76 lb)
Description
Robust construction and long term reliability. Capex V2 pumps are ideal for low maintenance applications.
• Can also be supplied with a brushless DC motor which has a service life of up to 20,000 hours.
• Lightweight components, slimline design and the ability to easily rotate the pump heads.
• Offers exceptional performance for its size, the Capex V2 series is equally suited for both vacuum and pressure installs.
