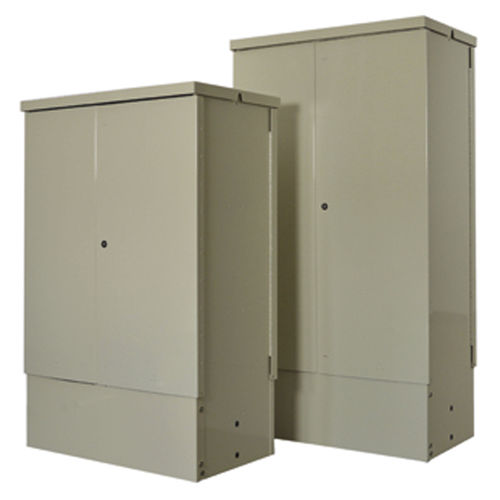

Panel enclosure CSE

flangerectangularsquare

Charles Splice Enclosure (CSE) Series provides affordable metallic enclosure solutions for housing a variety of equipment. Designed for storing copper splices (6,000 pairs to 10,000 pairs) or sealed fiber splice enclosures with cable slack storage, CSE offer a useful combination of superior environmental protection, ease of installation, and generous internal volume. CSE are constructed of aluminum and powder coated for long service life. They are designed for pad mounting to a precast concrete pad or Charles advanced composite pad (CPAD), or direct-buried using two 42” mounting stakes. Each enclosure features two sets of doors with 3-point latching for easy access to the cabinet’s contents. Configured for copper splice storage, the enclosure features a robust double-sided central mounting flange equipped with two sets of insulated, repositionable ladder bars, cable attachment brackets and multi-position bond plate. A lower removable front panel enables the cabinet to be easily positioned over existing cables and conduits for new or rehabilitation situations. Removable lower access panel allows enclosure to be moved into mounting position with cables already in place (no snaking cables into the enclosure) 7/16” hex-head door access with 3-point door latches Low total cost of ownership Repositionable bonding and grounding bar offers flexibility for user equipment installation Optional mounting pad and universal mounting stakes creates mounting flexibility to meet unique requirements of installation location Front and back double doors enable access to the internal working areas
