Compact optical network unit CFITH-144

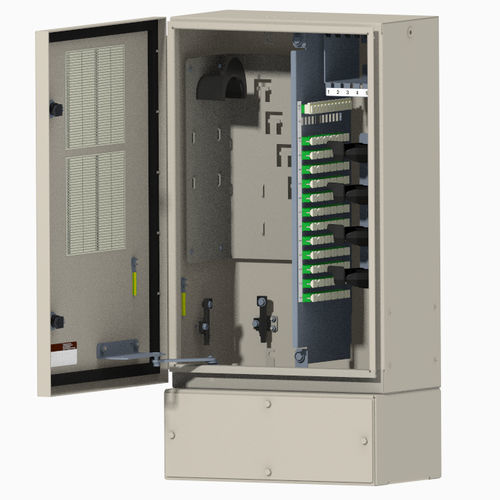

Charles’ CFITH-144 provides fiber distribution to subscribers from a compact, environmentally protected wall, pole or pad mount outdoor terminal. The CFITH-144 has been designed with flexibility in mind. These PON terminals feature a pivoting bulkhead with 144 SC/APC connectors and have space for up to five splitters for incremental growth. Stub cables are preconnectorized and 100% factory tested to create a turnkey fiber distribution solution ideal for apartments, strip malls, business parks and other multi-user locations. The CFITH-144 is constructed from powder-coated aluminum that is both durable and lightweight. The unit can be quickly installed by a single technician. The front access door is secured with low-profile, 216-tool quarter turn locks and padlock hasps for additional access control. An optional 6” plinth is available for padmount deployments. Splitter Capacity: 5 Splitter Slots Cable Management: 5 Bend Radius Controls, Splitter Tail Storage Scalable Bulkhead: 12/24 Feed / 144 Distribution Maximum Adapter Type: SC/APC Wall. pole or pad mount Optional 6" Plinth for pad mount applications Cable Entrances: 1 Feed / 2 Distribution Cable Attachments: 2 Stub Length / Type: 100’ Pre-Connectorized Riveted aluminum construction with powder-coated paint finish Aluminum construction resists corrosion for long service life
