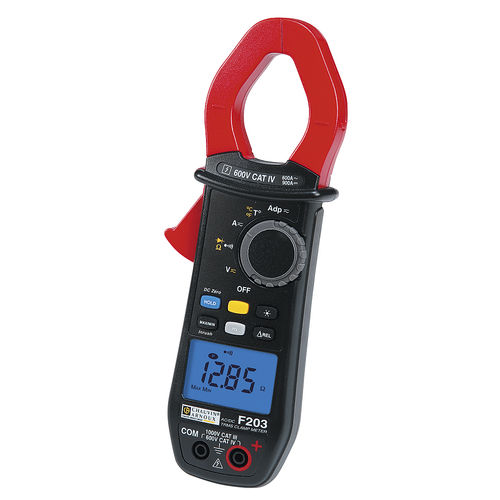

Digital clamp multimeter F203
portable600 V1000 V

Digital clamp multimeter - F203 - CHAUVIN ARNOUX - portable / 600 V / 1000 V
Digital clamp multimeter - F203 - CHAUVIN ARNOUX - portable / 600 V / 1000 V
Digital clamp multimeter - F203 - CHAUVIN ARNOUX - portable / 600 V / 1000 V - image - 2
Digital clamp multimeter - F203 - CHAUVIN ARNOUX - portable / 600 V / 1000 V - image - 3
Add to favorites
Compare this product


Characteristics

Display
digital
Form
portable
Max voltage
600 V, 1000 V
Max current
600 A
Safety rating
cat III, cat IV
Additional features
with thermometer
Other characteristics
TRMS, AC/DC

Description

The F203 clamp is ideal for the needs of both self-employed electricians and SME contractors in the electrical sector. Equipped with a fast 12-bit TRMS digital acquisition system, F203 clamps offer particularly accurate measurements whatever the signal's type and waveform. Specifications: •Clamping diameter: 34 mm •600 A AC / 900 A DC current measurement •AC and DC voltage up to 1,000 V •Resistance and audible continuity •Temperature •Automatic AC/DC detection •TrueInrush current measurement •Hold, Min, MAX •RELative (ΔX) and differential (ΔX/X) measurements •Adapter function •CAT IV 600 V
