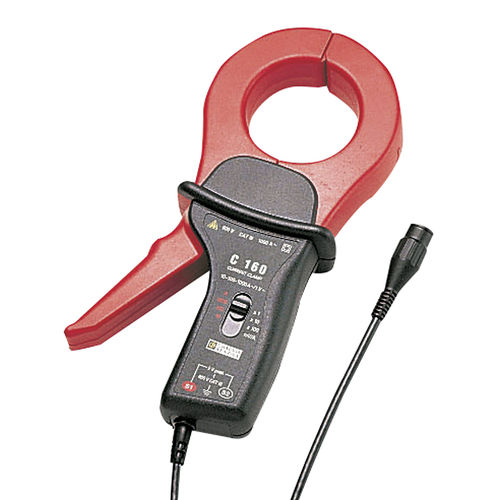

AC clamp ammeter C160

portablemeasurement

The C Series is a range of high-performance 1,000 A transformer clamps. The round jaw shape and the uniformly-distributed winding guarantee accuracy and minimum phase difference. It is equipped with an oscillating magnetic element adjustment system and a patented system for gradual assisted jaw opening. Its Ø 52 mm clamping capacity allows current measurements on most conductors on CAT III 600 V industrial and tertiary installations. When used with an oscilloscope, this isolated current sensor offers 3 sensitivities and can be used to view currents with a bandwidth of up to 100 kHz. Main features of the C160 model: - Output signal: AC voltage - Output / input ratio: 100 mV / A AC, 10 mV / A AC, 1 mV / A AC, - Output via coaxial cable and isolated male BNC plug
