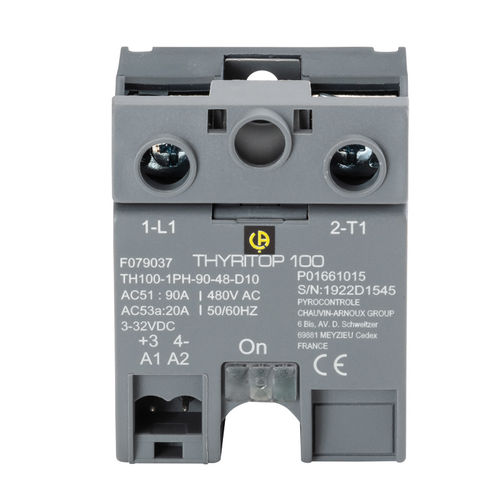

24 Vdc solid state relay THYRITOP 100

220VACpowerwith heatsink

Highlights • The most widely-used type of static relay in the world of industry • 24 Vdc or 230 Vac control • ON status LED • Protection against overvoltages THYRITOP 100 static contactors The THYRITOP 100 models operate in BURST firing mode with logical control. The relay is activated when the voltage reaches zero and deactivated when the current reaches zero. It is designed for use in applications with high transients. Main specifications • Current ranges: 15 A – 25 A – 50 A – 90 A • Rated voltage ranges: 240 Vac - 480 Vac - 600 Vac • Logical control voltage: 24 Vdc - 230 Vac • Activation: switch to zero voltage Available options • Protection against overvoltages • Terminal strips (4 types) • Radiators (heat sinks) • Thermal grease • Adaptateur rail DIN • Fuse + fuse holder Main sectors of application • Packaging machines • Manufacturing machines • Extrusion lines • Drying ovens • Thermoforming machines • Control applications involving high switching speeds
