Thyristors power controller THYRITOP 500
burstsingle-phasefor heating systems

Thyristors power controller - THYRITOP 500 - CHAUVIN ARNOUX - burst / single-phase / for heating systems

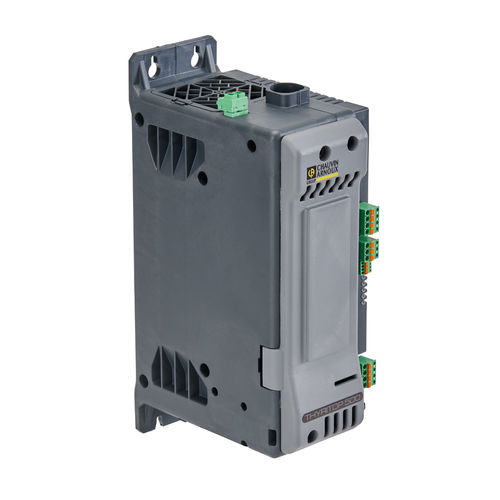

Thyristors power controller - THYRITOP 500 - CHAUVIN ARNOUX - burst / single-phase / for heating systems
Thyristors power controller - THYRITOP 500 - CHAUVIN ARNOUX - burst / single-phase / for heating systems - image - 2
Thyristors power controller - THYRITOP 500 - CHAUVIN ARNOUX - burst / single-phase / for heating systems - image - 3
Thyristors power controller - THYRITOP 500 - CHAUVIN ARNOUX - burst / single-phase / for heating systems - image - 4
Thyristors power controller - THYRITOP 500 - CHAUVIN ARNOUX - burst / single-phase / for heating systems - image - 5
Add to favorites
Compare this product


Characteristics

Technology
thyristors
Type
burst, single-phase
Other characteristics
for heating systems

Description

Highlights • Ideal for controlling and obtaining comprehensive information on the values of the currents, voltages and powers of industrial electrical heating processes. • Configurable command input: 0-10 V – 0/4-20 mA • Master/slave operating mode • Conduction: BURST firing, half single-cycle, phase angle • Power control: UxI, U², I², U, I Description THYRITOP 500 range of single-phase power controllers The THYRITOP 500 models can be used to manage the electrical power of most industrial heating elements: • Low thermal coefficient o Nickel-chrome resistor o Medium and long-wave infrared lamps • High thermal coefficient o Kanthal™ and Super Kanthal™ (MiSo2) heating resistors o SHort-wave infrared lamps • Inductive loads o Transformers o Inductors 2 models are available • 25 A – 40 A – 50 A – 60 A – 75 A – 90 A – 120 A single-phase power controllers • 150 A – 200 A – 250 A single-phase power controllers Main specifications • Control: I - I² - V - V² - P • Current ranges: 25 A – 40 A – 50 A – 60 A – 75 A – 90 A – 120 A – 150 A – 200 A – 250 A • Rated voltage ranges: 480 Vac – 600 Vac – 690 Vac • Configurable control input: 0-10 V – 0/4-20 mA • Activation: BURST firing – Half single-cycle mode with zero voltage switching – Phase angle • Master/slave operating mode for controlling three-phase resistive loads Advanced customization and parameterization with the FREE PYROTOOLS software. A simple, clever tool for: • Configuration of the parameters • Display of the data and analysis of the parameters (measured values, setpoints, alarms, etc.) • Data recording and archiving
