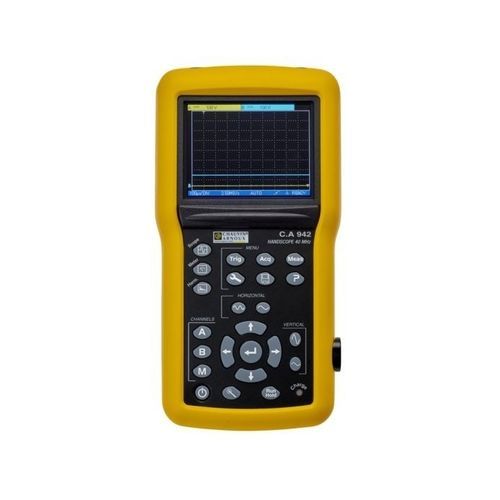

The shockproof, IP54, HANDSCOPE CA 942 oscilloscope fits comfortably in one hand.
This ergonomic instrument is also equipped with a TFT colour screen and LED backlighting for precise data display. To make it simpler to use, intuitive pictograms and integrated multilingual help are available at all times.
The HANDSCOPE combines three measuring instruments in 1 on 2 channels:
- 40 MHz oscilloscope with 2 totally-isolated 600 V CAT III channels – 40 MHz bandwidth – 2 GS/s - 5 mV to 200 V/div and 25 ns to 200 s/div
- Independent 8,000-count multimeter with power measurements,
- Built-in 31-order harmonic analyser (fundamental between 40 and 450 Hz)
2 MB are available for recording data and, in multimeter mode, it is possible to store graphic recordings of 2,700 measurements (5 min to 1 month).
Isolated USB communication with the SCPI protocol is available. This makes it simple to program the instrument remotely with the SX-METRO software.
These products have been developed using an Eco-Design approach to reduce their environmental impact. They come with a 3-year warranty.
