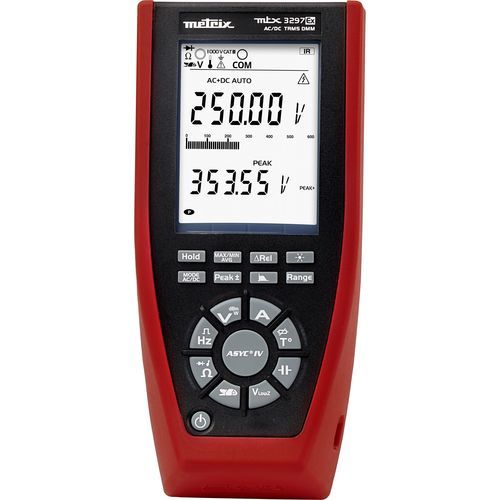

Digital multimeter MTX 3297Exportable1000 V600 V
Add to favorites
Compare this product
Characteristics
- Display
- digital
- Form
- portable
- Max voltage
- 1000 V, 600 V
- Max current
- 10 A
- Safety rating
- cat III, cat IV
- Additional features
- frequency, with thermometer
- Protection level
- IP67, ATEX
- Applications
- industrial
- Other characteristics
- TRMS
- Max DC voltage
Max.: 1,000,000 mV
Min.: 0 mV
- Max AC voltage
Max.: 1,000,000 mV
Min.: 0 mV
- Max DC current
Max.: 10 A
Min.: 0 A
- Max AC current
Max.: 10 A
Min.: 0 A
- Max resistance measure
60 mOhm
- Max capacity measure
Max.: 60,000,000 nF
Min.: 0 nF
- Max frequency measure
Max.: 200,000 Hz
Min.: 10 Hz
- Resistance precision
1 %
- Process temperature
Max.: 800 °C
(1,472 °F)Min.: -200 °C
(-328 °F)- Length
196 mm
(7.72 in)- Width
90 mm
(3.54 in)- Height
47.1 mm
(1.85 in)- Weight
715 g
(25.22 oz)
Description
The MTX 3297Ex is a digital multimeter which complies with European directive 2014/34/UE on explosive (Ex) atmospheres. The MTX 3297Ex fulfils all the requirements related to the operating constraints in sectors such as:
• the oil industry
• the chemicals industry
• the pharmaceutical industry
• the cosmetics industry
• mining, etc.
It meets the needs of electrical maintenance teams: tests and troubleshooting inside and outside any hazardous zones with explosive atmospheres, without sacrificing compliance or measurement performance.
Usable outside Ex zones (out of operation), whatever the industrial activity, the MTX 3297Ex is a communicating instrument offering optimum industrial performance. It is possible to record the measurements on a PC by means of the SX-DMM software available for download from our website free of charge.
