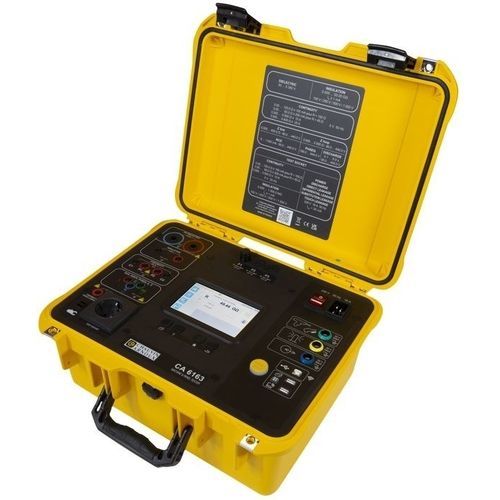

Insulation tester CA 6163

continuitydielectricdirect-contact

• Tests according to the regulatory reference bases • Customizable automatic scripts • Colour touch screen usable with gloves • Multilingual interface • Customizable visual inspections • 5 kV dielectric test, insulation 50 GΩ, continuity 25 A • Direct, differential, substitution and touch leakage voltage • Unweighted / weighted measurement networks, reversal of L-N polarity, welding machine • Discharge time • Automatic printing of Pass/Fail sticker • Interfaces for barcode, RFID, remote control and lamps • Storage of up to 100,000 tests • 1 USB-B port and 2 USB-A ports • Wifi communication • Analysis and report generation software for PC • Firmware updates via USB drive ERGONOMICS The CA 6163 is delivered in a yellow site case. It is equipped with a colour touch screen usable even when wearing gloves. Its user interface is multilingual and there are numerous help screens available at all times during use. In this way, users are guided by visuals, text and symbols. The CA 6163 can store up to 100,000 tests in its memory. It communicates via Wifi or via its USB ports. PC software transfers the data from completed tests via USB or Wifi for analysis and report generation. Firmware upgrades are performed very simply using a USB drive.
