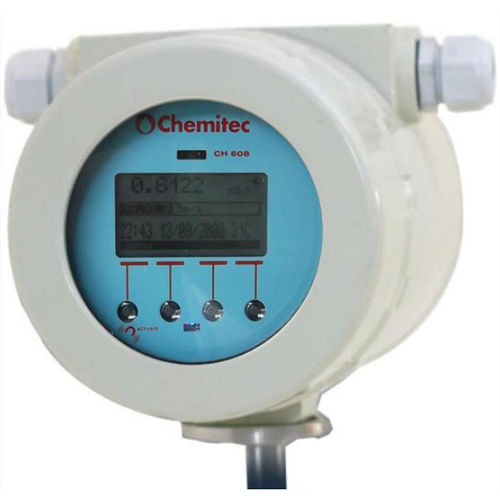

Electromagnetic flow meter S103C CH608 series

magneticvolumefor liquids

The first product of the new family of high performance converters. • Available in powered version 12/24 Vac-dc or 90-264 Vac (CH608A). • Available in battery powered version with a useful life of 6 years (*) (CH608B). • Available in battery mode with solar panel (CH608R) • Accuracy according to Class 1&2 of OIML R49. • Built-in data logger with optional input for pressure measurement. • Dedicated data logger for extended diagnostics. • Large graphics display with totaliser indications greater than 8mm. • Total management of electricity consumption with automatic sleep function and waking up with magnetic command. • IrCOM interface for programming communication with laptop. • MODBUS RTU interface for communication on RS 485 ( Hart Optional **) Billing consumption • District measurements • Transport lines • Residual water treatment systems • Irrigation The CH 608 converter has been designed with the purpose of meeting all the requirements of modern water management systems. It supports extended functions which make it perfectly suitable for measuring and billing in civil, industrial and agricultural sector and for flow measurement in residual water treatment. Converter performance has been developed to meet the need to measure even small flow rates with maximum accuracy. It is therefore ideal for use in leak detection campaigns due to battery power.
