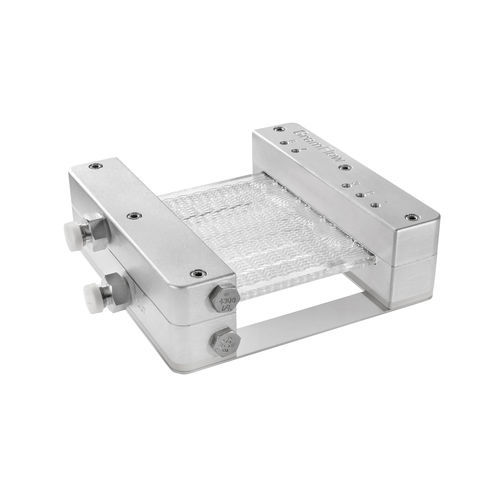

Continuous bioreactor GramFlow®

processscreeningbenchtop

GramFlow is designed for the screening, optimisation & performance of A+B type reactions at the lab-scale. Fabricated from borosilicate glass, the Flow Reactor has integrated heat exchange layers & pre-conditioning channels that allow mixing at the reaction temperature & thermal control of the reaction itself! Employing standard 1/4-28 UNF process ports & M16x1 service connectors, GramFlow can be used with existing pumps & thermostats or supplied as a total system on request. Examples of User applications: •Process feasibility assessment •Reaction screening & process optimisation •Material supply for performance testing •Flow rate: 0.2-10 ml/min (up to 0.6 kg/h) •Reactor volume: 1 ml •Wetted materials: Glass, PTFE & FFKM •Dimensions: 126 (W) x 61 (D) x 46 mm (H)
