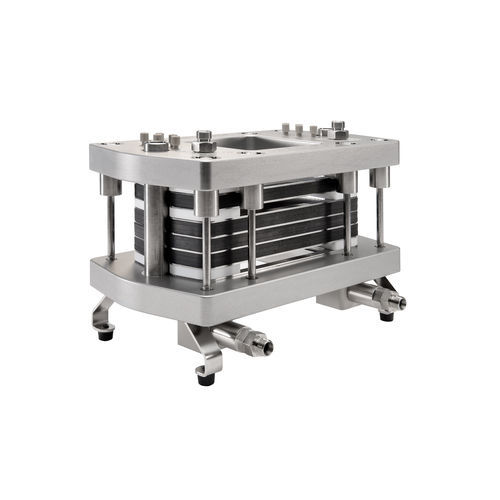

Continuous bioreactor Protrix®

processmodularwith thermostat

Protrix is a ceramic, metal-free Flow Reactor used for process development & small-scale production. It's unrivalled chemical compatibility & heat exchange performance allows process intensification & reaction control. Protrix enables the User to develop flow processes at the lab-scale, later transitioning to Plantrix for larger volume material production. Protrix is a modular, ceramic Flow Reactor for process development & small-scale production. Fabricated from diffusion bonded 3MTM silicon carbide & with integrated heat exchange, Protrix has unrivalled chemical compatibility & process control for challenging chemical applications. Employing standard 1/4-28 UNF process ports & M16x1 service connectors, Protrix can be used with existing pumps & thermostats or supplied as a total system on request. Examples of User applications: •Process intensification of highly corrosive media at elevated T/p •Definition of process control strategies & parameter influence on CQA's •Proof of concept ahead of scale-up in Plantrix MR555 •Processes include nitrations, cyanations, lithiations, diazotisations & halogenations •Flow rate: 0.2-20 ml/min (up to 1.2 kg/h) •Reactor volume: 1 to 13.5 ml •Wetted materials: SiC, PTFE & FFKM •Dimensions: 350 (W) x 200 (D) x 250 mm (H)
