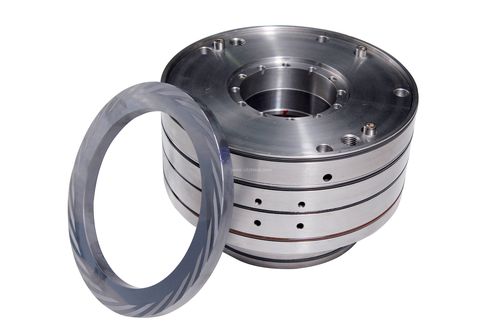

Cartridge mechanical seal YTG801

for compressorsfor the pharmaceutical industrygas-lubricated

Characteristics Other characteristics: gas-lubricated /heavy-duty Product applications: for compressor/ centrifugual pumps/turbo-compressor Pressure limit: Min.: 0 Mpa (0psi); Max.: 15MPa (2.17psi) Temperature limit: -104℃(-155.20°F); Max.: 280℃ (535.99°F) Speed: Min.:1000 rpm; Max.: 18000rpm Diameter: Min.:50 mm (1.9in); Max.: 200mm (7.8in) Materials: stainless steel/rubber/graphite Design/Structure 1. Adopt the fluid dynamic pressure groove to assure the reliability 2. Light material for rotary ring can reduce the sealing effect on the dynamic performance of the compressor rotor 3. Comb seal can ensure the leaking medium is not directly discharged into atmosphere Competitive power 1. High-performance and competitive price 2. Longer service life and low energy consumption 3. Perfect corrosion resistance 4. Get the ISO9001 and ISO14000 certificate 5. First level supplier of China Petroleum and China Petrochemical 6. Provide customers with a complete seal and system solution 7. Can be customized according to customers requirement Application industry Our products have been widely applied to petroleum, chemical fiber, fertilizer, oil refining, papermaking, nuclear power, power plant, metallurgy, food, pharmaceuticals, etc. Main products are mechanical seal, dry gas seal and many kinds of seal control systems, applying to rotating equipments.
