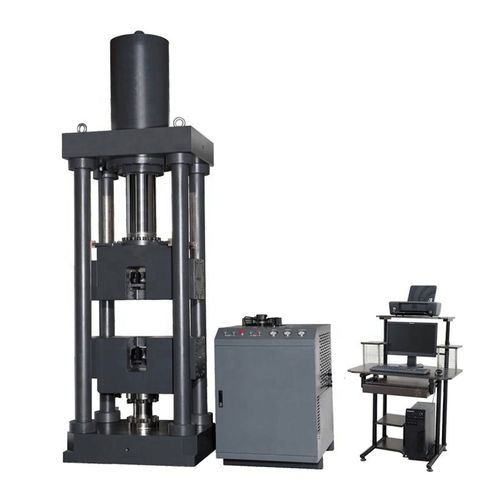

Universal testing machine WAW-L 3000KN

tensilecomputer-controlledautomatic

Application Field Metal wire: strip: bar, tube, sheet; Rebar, strand; Long-length specimens, specimens with large elongation and other high strength, high hardness metal; 1.Single-test-space-design, upper-cylinder, four-column frame structure, zéro clearance, superior rigidity, compact structure; 2.Hydraulic wedge grips offer fully open-front design making specimen loading efficient and safe for the operator; 3.Durable chrome-plated column for easy cleaning and a long-lasting-life; 4.Hand operation box makes the operation more convenient and flexible; 5.Ultra-large test space accommodâtes a large variety of specimen dimensions, grips, fixtures, furnaces, and extensometer 6.Automatic extensometer can be equipped to make an easy testing and measurement accuracy more reliable; 7.High-precision load cell directly measures force, strong résistance to latéral and impact; 8.High-speed bi-directional cylinder achieves a wide range of stroke adjustment, fast reset; 9.By using high pressure internai gear pump, the noise is less than 60 dB under full load; 10.The hydraulic System uses pressure servo technology, the System pressure always follow up with the working pressure, and thus more energy saving; 11.With hardware and software overload protection; 12.Advanced and reliable PCI bus technology to improve the speed of data acquisition, control signal response and control accuracy;
