Universal testing machine WAW-300D 300KNcompressiontensilebending
Add to favorites
Compare this product
Characteristics
- Test type
- compression, universal, tensile, bending, pull, shearing, tension/compression, durability
- Operating mode
- computer-controlled, automatic
- Test material
- for rubber, for plastics, for building materials, for wire ropes and strands, for pipe, for wire, for pipes, for bars and tubes, for rubber, for rebar, adhesive, for chains
- Sector
- for laboratories, for research and development, industrial, for quality control, for the construction industry, for civil and military aviation, for the petroleum industry, agricultural, for railway applications
- Technology
- servo-hydraulic
- Configuration
- vertical
- Other characteristics
- precision, static, high-stability, axial, high-speed
Description

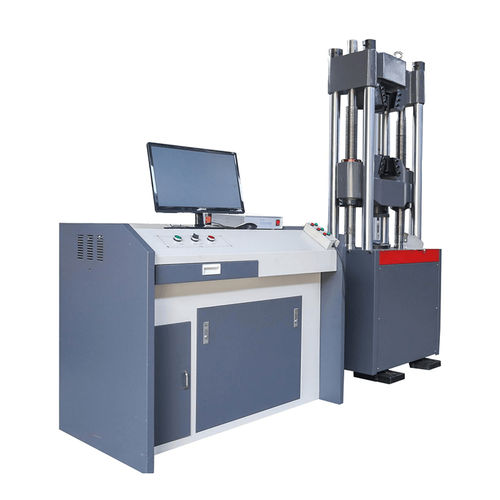

Model:WAW-300D Computer Control Hydraulic Servo Universal Testing Machine
Max.Force:300KN, 30 tons
Application:WAW-300D Computer controlled electro-hydraulic servo universal testing machine adopts the oil cylinder under-mounted host, which is mainly used for the tensile, compression and bending tests of metals and non-metals. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, colleges, scientific research units and other fields.
Specification:
Test machine level: No.1
Maximum tensile test space:580mm(can be modified)
Maximum compression space:500mm(can be modified)
Maximum moving speed of piston:50mm/min
Standard:
ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.ASTM E83, ISO 9513, BS3846, EN10002-4. ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.etc.
