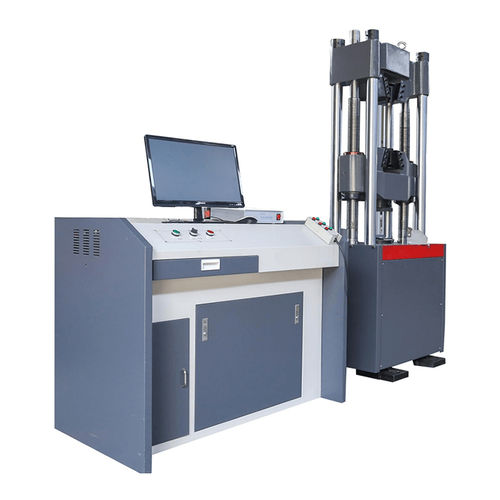

Universal testing machine WAW-1000D 1000KN
compressionbendingshearing

universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
universal testing machine
Add to favorites
Compare this product

Go to the Chengyu Testing Equipment Co.,Ltd website for more information

Characteristics

Test type
bending, tensile, compression, universal, tension, shearing, force, tension and compression, durability, pressure, tensile strength, hardness
Operating mode
computer-controlled, automatic, PLC-controlled
Test material
for tubes, for metallic materials, for moulding materials, vehicle, for rubber, for building materials, for adhesive tape, for chains, concrete, for springs, for round bars, for pipes, for copper, for cables, for wire, for bars and tubes, adhesive, for rebar, for cement
Sector
for research and development, industrial, for laboratories, for the automotive industry, for quality control, for the construction industry, for the packaging industry, for civil and military aviation, universal, agricultural, for railway applications
Technology
servo-hydraulic, servo-mechanical
Configuration
vertical
Other characteristics
precision, static, high-stability, high-speed, 4-column, axial

Description

Model:WAW-1000D Computer Control Hydraulic Servo Universal Testing Machine Max.Force:1000KN, 100 tons Application:Mainly used for the tensile, compression and bending tests of metals and non-metals. Applicable to metallurgy, construction, light industry, aviation, aerospace, materials, colleges, scientific research units and other fields. Specification: Test machine level: No.1(0.5 can be optional) 6-Columns Maximum tensile test space:670mm(can be modified) Maximum compression space:600mm(can be modified) Maximum moving speed of piston:50mm/min Flat specimen clamping thickness:0-60mm Flat jaw range:0-15/15-30/20-40mm Round Specimen Holder Diameter:6-13/13-26/26-40/40-50mm Platen size:Φ200mm Bending test stand spacing:450 mm Stick width:140mm Pivot diameter:40mm Piston stroke:250mm Dimensions Host: 910×780×2350mm;OilSource:1100×650×870mm Standard: ASTM E4, ISO7500-1, EN10002-2, BS1610, DIN 51221.ASTM E83, ISO 9513, BS3846, EN10002-4. ASTM E8, ASTM A370, ASTM 615, ISO 6892-1, ISO 146303, ISO 156301, BS 4449.etc.
